Wire Butt Welding Machine

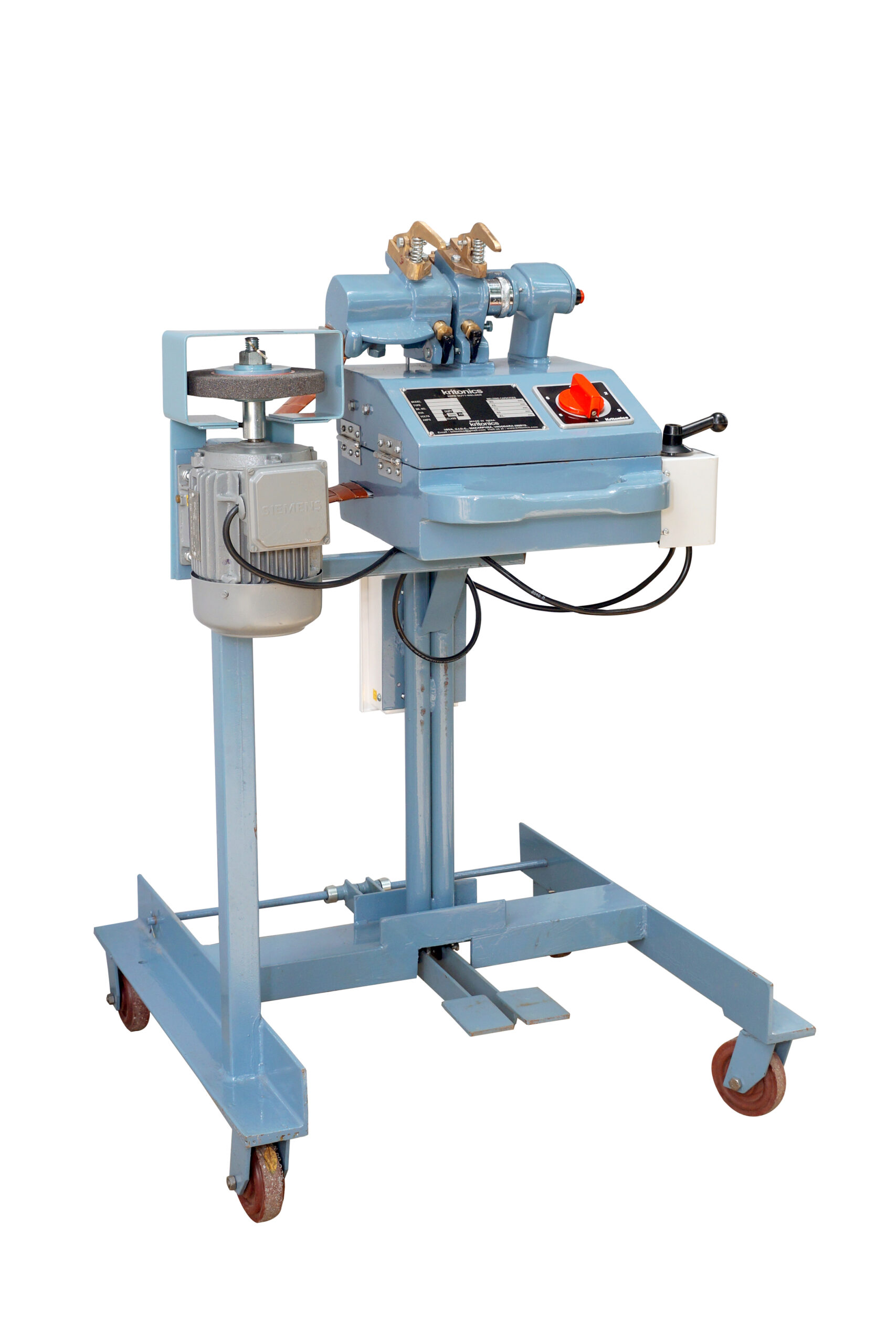

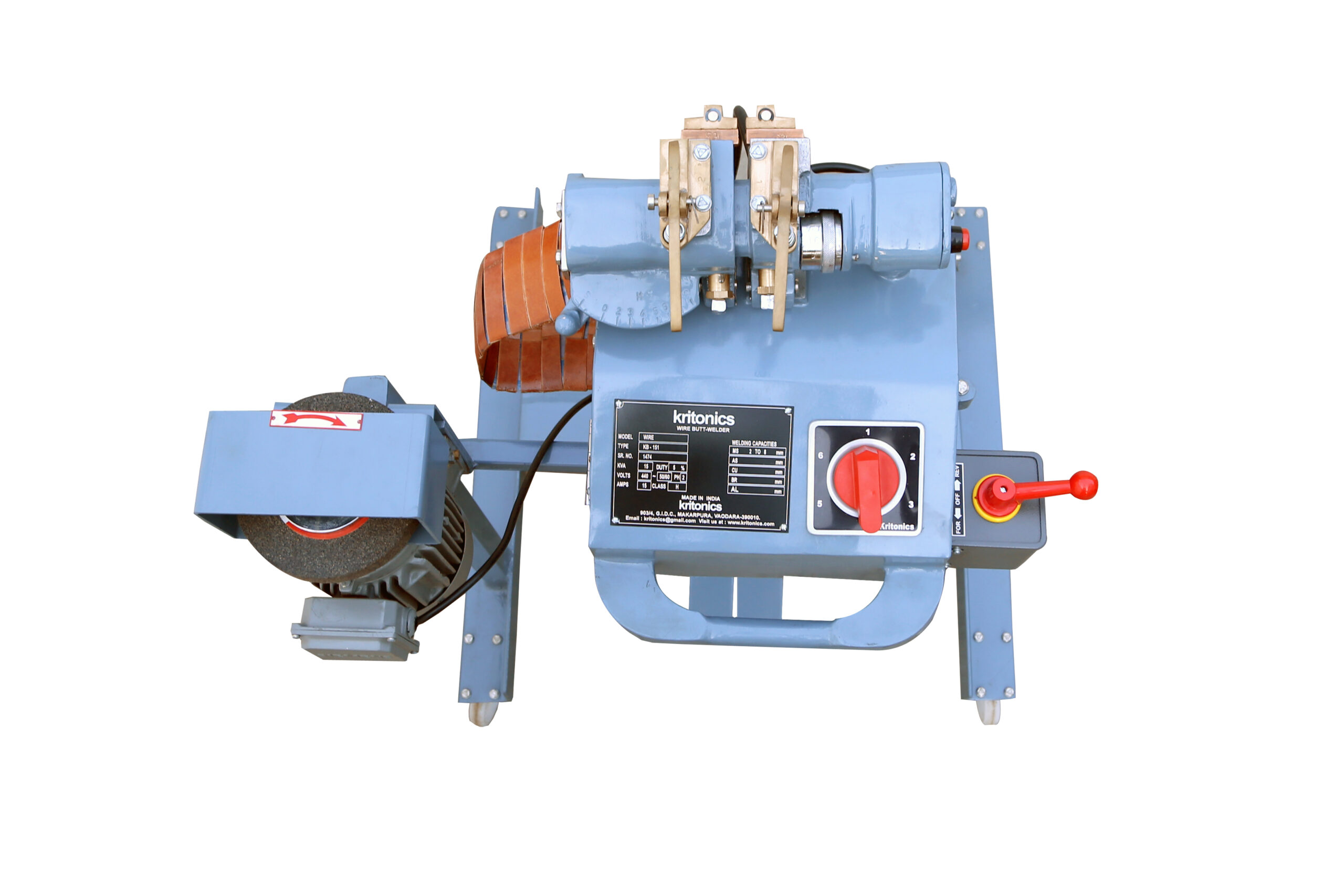

KRITONICS Wire Butt Welders are highly Precision and elegantly designed automatic Upset Butt-Welding Machines. The Wire Butt Welders are portable models mounted on wheeled trolley type stand with arrangement of foot pedal operator.
Key Features:
- Easy to Operate
- Upset Travel
- Upset Pressure
- Upset Gap
- Clamp
- Electrodes
- Weld Current Selection
- Weld Current Initiation
- Weld Current Cut-Off
- Electrode Linghting Fixture and Annealing
Weldability
| Weldabilty – Diameter selection of material weldable (in mm) | Strip Section Welded in sq mm | |||||||
| TYPE | KVA | DutyCyle | MS / SS/ GI | CS/HC/AS | Copper | Aluminium | Copper | Aluminium |
| KB-051 | 5 | 2% | *2 – 8 | – | 2 – 3 | 3 – 5 | – | – |
| KB-052 | 5 | 7.5% | 2 – 8 | *2 – 8 | – | – | – | – |
| KB-081 | 8 | 5% | *2 – 8 | – | – | – | – | – |
| KB-101 | 10 | 2% | *2-10 | – | – | – | – | – |
| KB-121 | 12 | 0.6% | 1-5 | – | *1-4 | *1.5-6 | *1 to 12 | *1.5 to 28 |
| KB-151 | 15 | 5% | *2 – 10 | – | – | – | – | – |
| KB-201 | 20 | 0.5% | 3 – 8 | – | *2.5 – 6 | *4 -7 | *5 – 28 | *12 – 38 |
Technical Data
Nominal Electrical Rating : 5 KVA, 8 KVA, 10 KVA,12 KVA, 15 KVA, 20 KVA
Output Current Selection Steps : 1 TO 6
Construction : Sturdy
Clamping Type : Manual, Paddle Operated
Input Supply : 210V (1 Phase ),415V (2 Line of 3 Phase)
Weight : 75 to 80 KG
Overall Dimensions : 25″ X 25″ X 45″ (Appx.)
- Grinding Attachment
- Clamping Attachment
- Cutting Attachment
